Details

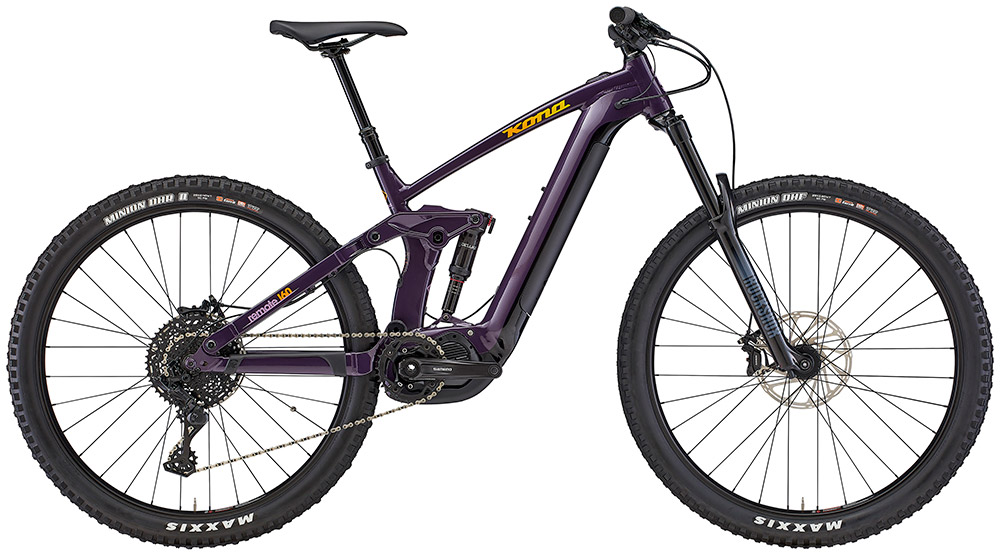

The Remote 160 brings the joy of a longer travel of an e-MTB to the masses. A 29" wheeled ripper, this bike brings all the fun of a 160mm travel e-MTB in a more affordable package. A Shimano motor and battery provide a customizable amount of pedal-assist ensuring you have the exact amount of power you want when you want it. Ultra-powerful hydraulic disc brakes and 200mm rotors front and rear provide controlled stopping even when you're hauling ass on steeper terrain. No matter what your reasoning, the Remote 160 will have you laughing up and down the trails.
KONA 6061 ALUMINUM
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing's wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame's strength and ride characteristics depending on its intended application.
INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
TAPERED HEAD TUBE
More girth at the bottom of the head tube better distributes shock force, prolonging the bearing life of the headset itself and eliminating brake shudder, while providing confident steering performance. The inherent strength of its triangular design also means a stronger steering position and improved balance, giving the rider more control in rough terrain. A zero-stack, tapered head tube also puts strength where the load is going—into the lower headset cup—maximizing bearing durability where it's needed.
TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x157mm AXLE
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted.
BEAMER INDEPENDENT SUSPENSION
Built to be off-the-top progressive, Beamer Independent Suspension helps the bike to stay higher in the travel and recover from hits more quickly. The Operators are instilled with what our product managers like to call "pure shock movement," whereby the shock is protected from side load. Designed to be highly tuneable and extremely durable, the Beamer IS is our version of greased lightning.
Frame Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
Seat Tube Length (mm) | 385 | 410 | 450 | 485 |
Top Tube Length (mm) | 582 | 609 | 638 | 677 |
Reach (mm) | 417 | 442 | 467 | 502 |
Stack (mm) | 620 | 625 | 635 | 644 |
Standover (mm) | 752 | 767 | 765 | 778 |
Head Tube Angle | 64° | 64° | 64° | 64° |
Head Tube Length (mm) | 115 | 120 | 130 | 140 |
Seat Tube Angle | 75.1° | 75° | 74.9° | 74.8° |
Chainstay Length (mm) | 435 | 435 | 435 | 435 |
Bottom Bracket Drop (mm) | 25 | 25 | 25 | 25 |
Bottom Bracket Height (mm) | 350 | 350 | 350 | 350 |
Wheelbase (mm) | 1198 | 1225 | 1254 | 1294 |
Front Center (mm) | 761 | 788 | 818 | 857 |
Fork Length (mm) | 571 | 571 | 571 | 571 |
Fork Offset (mm) | 51 | 51 | 51 | 51 |
Frame Size | Height (inches) | Height (cm) | Inseam (inches) | Inseam (cm) |
---|---|---|---|---|
X-Small | 4'10"-5'1" | 147-155cm | 24"-27" | 61-69cm |
Small | 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm |
Small, Medium | 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm |
Medium | 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm |
Medium, Large | 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm |
Large, X-Large | 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm |
Large, X-Large | 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | Kona 6061 Aluminum Butted 160mm Travel |
---|---|
Fork | RockShox 35 Gold RL DebonAir 160mm Tapered 110 Spacing |
Rear Shock | RockShox Deluxe Select + Trunnion |
Rims | WTB ST i30 TCS 2.0 |
Hubs |
Front: Formula 110x15mm Rear: Formula 157x12mm |
Spokes | Stainless Black 14g |
Tires |
Front: Maxxis Minion DHF EXO+ TR 3C 29 x 2.5" WT Rear: Maxxis Minion DHR II EXO+ TR 3C 29 x 2.5" WT |
Crankset | Shimano E8000 |
Chainrings | 34t |
Shifters | Microshift Advent X |
Rear Derailleur | Microshift Advent X |
Cassette/Freewheel | Microshift Advent X 11-48t 10spd |
Chain | KMX X10 |
Brakes | SRAM Guide RE |
Rotors | SRAM Centerline 200mm |
Brake Levers | SRAM Guide RE |
Handlebars | Kona XC/BC 35 |
Tape/Grips | Kona Key Grip |
Stem | Kona XC/BC 35 |
Headset | FSA No.57E |
Seatpost | TranzX Dropper Internal 31.6mm |
Saddle | WTB Volt |
Pedals | Sold separately |
Motor | Shimano E7000 20MPH |
Battery | Shimano 504Wh |
Controller/Display | Shimano SC-E7000 Display |
Charger | Shimano STEPS 2A |
* Subject to change without notice.
