Jamis Icon Pro - 2019

Jamis Icon Pro
$1,999.00
Color: Nimbus Grey
Size: 48cm
Please select options Unavailable
Sorry, this item is currently not available. Please give us a call for further assistance (703) 534-7433

Details

Jamis' Icon road series is the epitome of advanced aluminum road bike frame design. The result is unapologetically responsive and requires a certain amount of character to fully appreciate its ride qualities. If explosive acceleration defines your style, the Icon Pro is your bike. Solid, dependable components adorn the Pro build, featuring a full Shimano 105 group, American Classic tubeless wheels wrapped in Vittoria Zaffiro 700 x 25c tires, and a 3T bar and stem combo. Jamis' monocoque carbon fork damps road vibrations while giving you pinpoint steering performance through the extra stiffness provided by 12mm thru axles, and a Selle Royale Seta S1 saddle and Jamis carbon fiber seatpost wrap up this primed criterium destroyer.

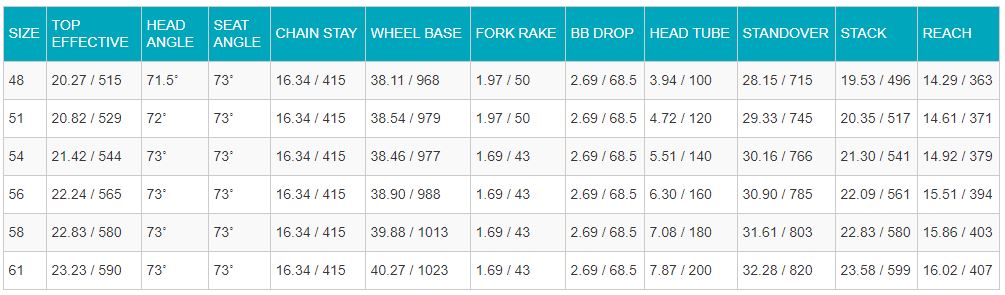

Jamis Icon geometry chart

Specs

Frame Synthesis double-butted 6061 aluminum tubeset, SST tubing diameters, Jamis MTS (Modular Thru-axle System), butted chainstays with clearance for 28c and flat mount disc brake mounts, twin seat stays, 1.5 - 1 1/8" tapered head tube, Press Fit 30 BB shell, 34.9mm seat tube and replaceable derailleur hanger.
Fork Jamis Road Disc carbon composite, FEA optimized Near Net SPV molding process, 1.5" hollow formed crown, monocoque one-piece forming technology, flat mount disc brakes with internal cable, Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts
Headset FSA integrated, sealed bearing with nylon upper compression ring, 1.5 - 1 1/8"
Axles Front: 12mm
Rear: 12 x 142mm
Rims/Wheels American Classic 2622 Tubeless 26mm height with 22.7x18.5 width rims
Hubs AC 6-bolt alloy hubs, 32H
Spokes Round spokes
Tires Vittoria Zaffiro, 700 x 25c, folding
Crankset Shimano 105 FC-5800
Chainrings 50/34
Bottom Bracket Enduro PressFit 30 with Wheels MFG adaptors
Chain Shimano CN-HG601
Front Derailleur 105 FD-5801 braze-on with 34.9mm alloy clamp
Rear Derailleur Shimano 105 RD-5800
Cassette/Rear Cogs Shimano 11-speed, 11-28T
Shifters Shimano ST-RS505 Dual Control STI, 22-speed
Handlebars 3T Ernova, 7075 aluminum, 31.8 x 380mm (44), 400mm (48/51), 420mm (54/56), 440mm (58/61)
Tape/Grips Fizik Microtex Superlight Soft Touch tape
Stem 3T ARX II, 3D forged 2010 alloy, 6-deg x 90mm (44/48/51), 100mm (54/56), 120mm (58/61)
Brake Levers Shimano ST-RS505 Dual Control STI levers
Brakes Shimano BR-RS505 hydraulic disc brakes with resin pads, Shimano 160mm rotors
Saddle Selle Royal Seta S1 with integrated clip system
Seat Post Jamis carbon fiber micro-adjust, 31.6 x 300mm with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Nimbus Grey / 48cm 845436031231 03-1586 : 03-1586GY 210000030689
